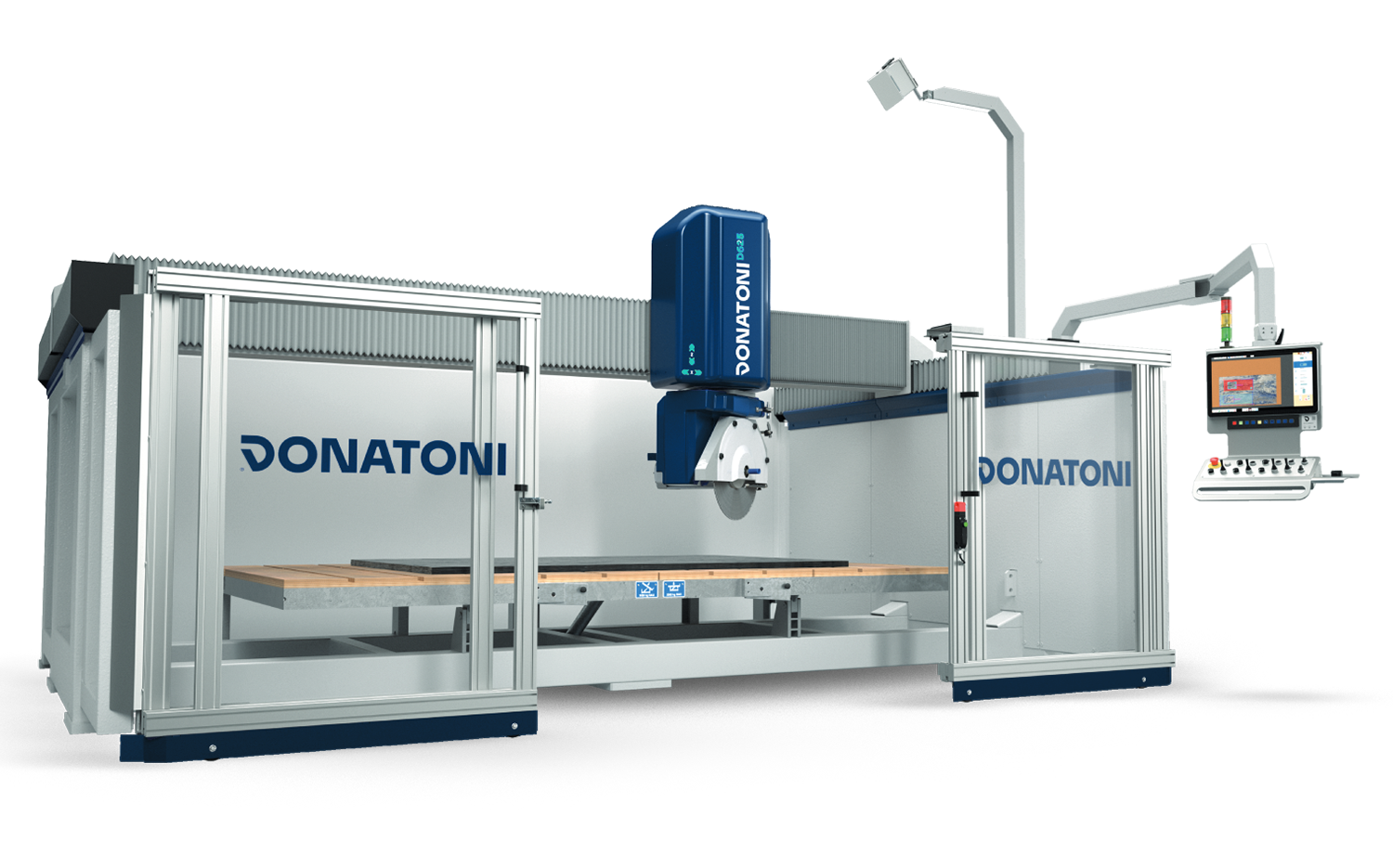

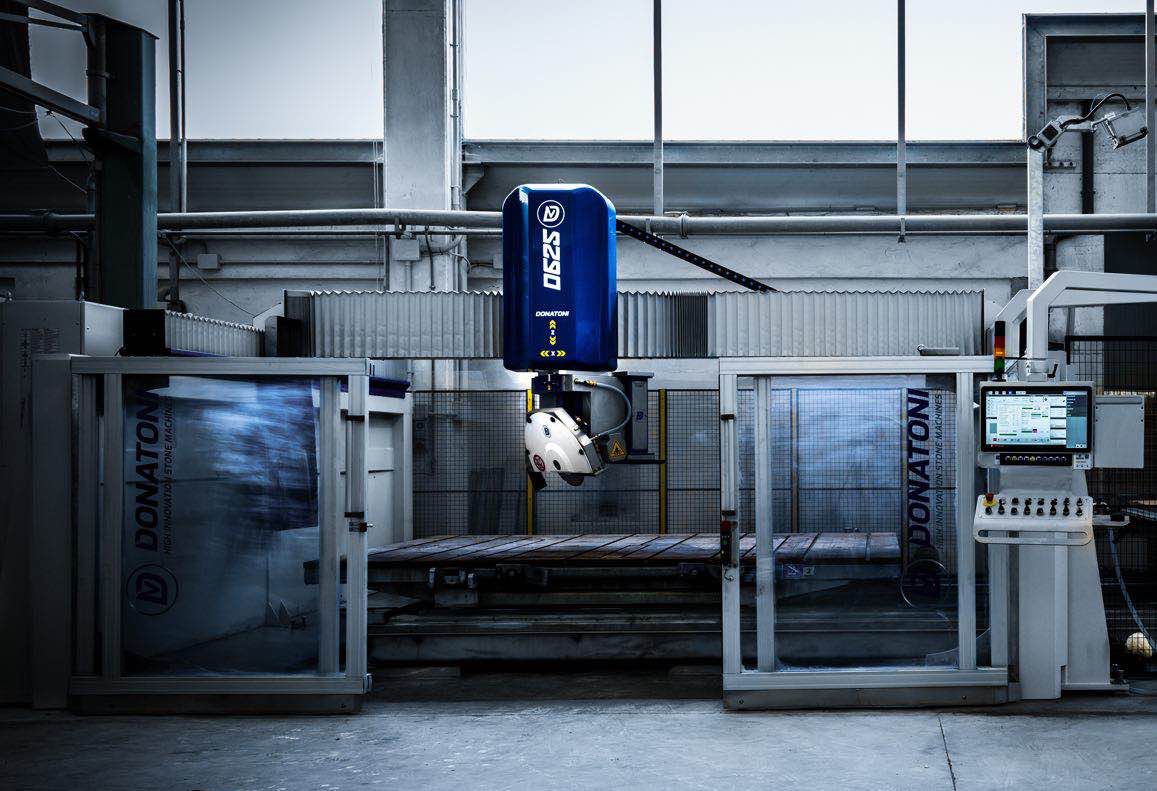

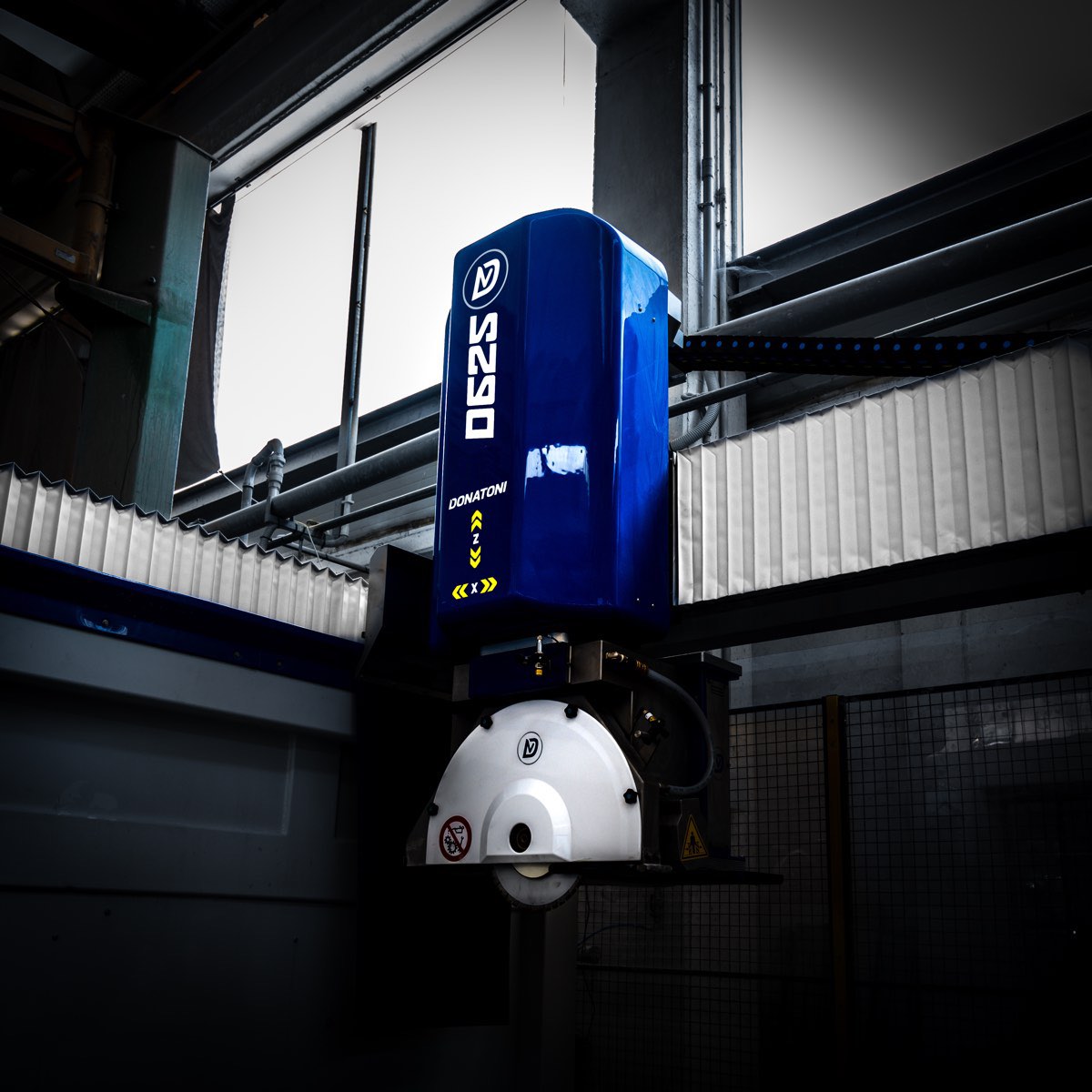

The DONATONI D625 is a 5 interpolated axes simple and compact CNC bridge milling machine, ideal for the production of floors, claddings for the building industry, kitchen and bathroom countertops, in marble, granite and artificial stone. It is a machine that can perform cuts up to a depth of 200 mm, simple and complex shaping.

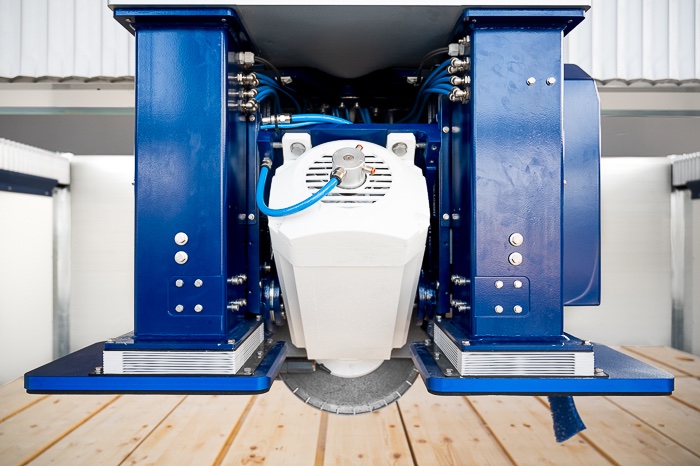

High-quality electrospindles kW 13 /S6 controlled by an inverter that allows the number of revolutions to be adjusted from 0 to 5500/7000 rpm. They allow the use of the blade and diamond tools (such as a drills or milling cutters). The tool change procedure is manual or automatic (ISO 40 tool holder).

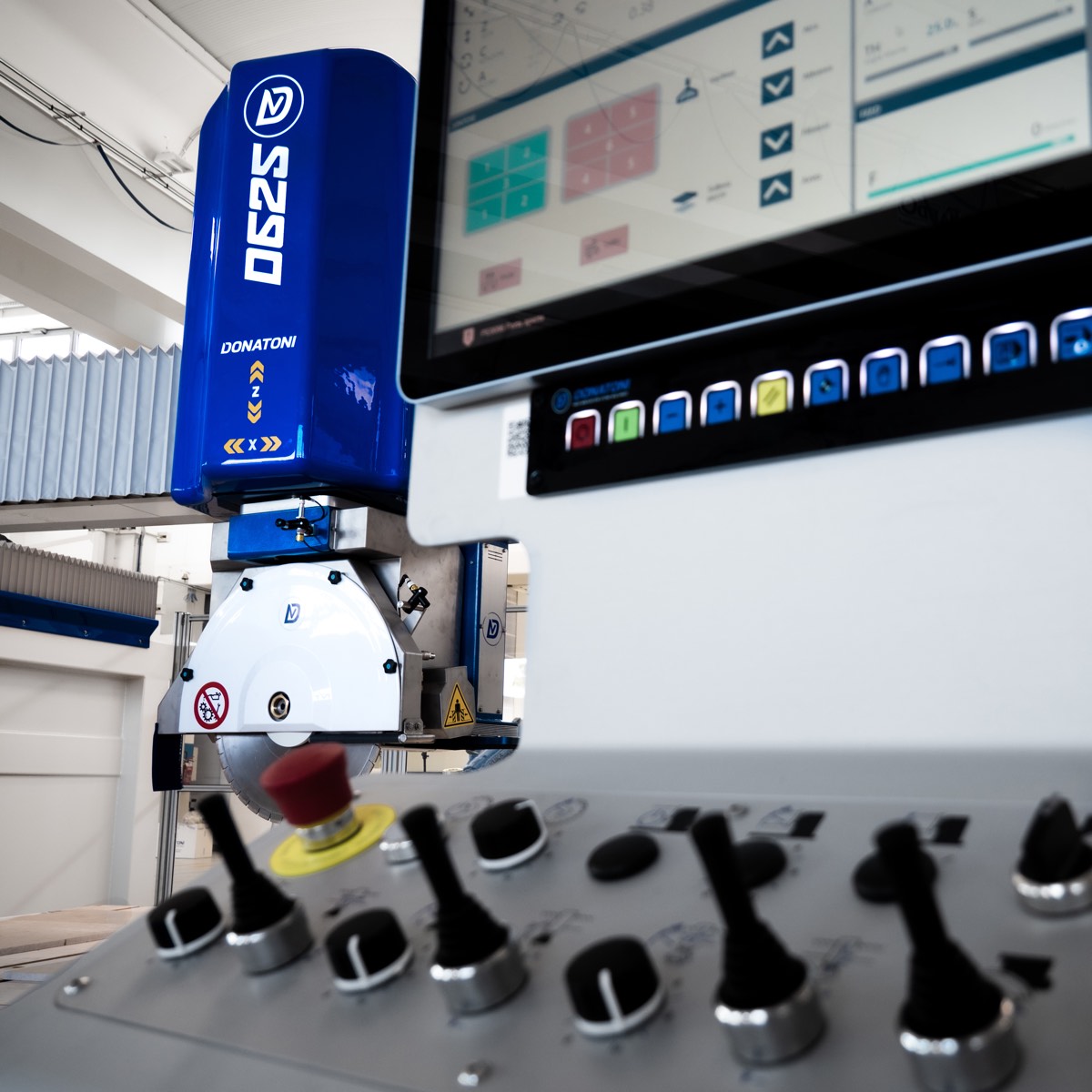

Control consolle on double-jointed on swing arm, manual controls, video 21″ color touch-screen, keyboard and usb port for importing files.
Lubrication of the X and Y axes with grease
Disk presetting unit: measurement system of blade diameter.
Side, vertical electrospindle, controlled by an inverter with 0-15.000 rpm, that allows the operator to use small-diameter diamond tools with ½ “”gas connections for incremental cutting / blind or through-hole drilling, as well as combined operations with the blade and milling cutter.
Manages the integration of the machine with the programming softwares.
Perfection in processing is reached through multiple movements that need o be perfectly coordinated. Every Donatoni machine is created with a smart system for managing work, integrated with all the parts that manage its movements; we call this system D-Inside, the Brain of the machine. D-Inside is an advanced interface but simple from the point of view of use and also ideal for less expert operators as it manages the machine-software system. The D-Inside system offers various programming options and can be interfaced with various types of Donatoni software, such as Parametrix and all the additional modules, CAD-CAM and other software so as to customise the machine according to the customer’s needs.
Shaping can be done in the roughing (combing) and the finishing (brushing) modes, but also in the combined mode.
ISOCAM is the software that allows files to be created for the execution of straight or concave and convex arc shaping with both vertical and horizontal discs.
Parametrix is the simple and intuitive Software developed by Donatoni Macchine and designed to optimise the management of cuts of variously-shaped pieces on a slab.
It enables work processes involving cuts with discs, milling cutters and drills, the insertion of straight and curved forms and shapes that have been pre-set or imported from DXF files, and the optimisation of processing times and slab surfaces. Based on the available surface it is possible to set the pieces arrangement and cut sequences. In the software are included anti-collision functions, manual and automatic nesting, production statistics management. Parametrix can be combined with Photoslab and Move-System.
It allows the surface of slabs placed on the workbench to be automatically detected by camera.
The system optimises the use of slabs and speeds up the positioning of pieces, avoiding the generation of defects and allowing cuts to be made according to the veins of the material.
The software is automatically activated.
Donatoni Scan CNC makes it possible to reproduce a two-dimensional object such as a kitchen countertop or a step, starting from a cardboard template, or from the damaged object itself.
Thanks to the laser pointer, SCAN CNC detects the shape of the piece placed on the workbench in a few simple steps, perfectly following the edges and creating a DXF file in real time.
After the operation the operator can:
The DONATONI D625 is a 5 interpolated axes simple and compact CNC bridge milling machine, ideal for the production of floors, claddings for the building industry, kitchen and bathroom countertops, in marble, granite and artificial stone. It is a machine that can perform cuts up to a depth of 200 mm, simple and complex shaping.
| Number of interpolated axes | N° | |
| Carriage stroke X axis | mm | |
| Maximum carriage speed (X axis) | m/min | |
| Bridge stroke Y axis | mm | |
| Maximum bridge speed (Y axis) | m/min | |
| Vertical stroke Z axis | mm | |
| Maximum head speed (Z axis) | m/min | |
| Blade-carrying head rotation (C axis) | deg | |
| Disc head tilting movement (axis A) | deg | |
| Adjustable cut feeding speed | m/min | |
| Working table dimensions | mm | |
| TOOL Electro spindle motor power | kW | |
| TOOL electro spindle motor nominal torque | kW | |
| TOOL electro spindle motor speed range | rpm | |
| Minimum disc diameter | mm | |
| Maximum disc diameter | mm | |
| Slab lenght gauges stroke | mm | |
| Max. disc usable with slab lenght gauges | mm | |
| Maximum cutting depth | mm | |
| Water consumption (3 bar) | l/min | |
| Air Consumption | l/min | |
| Standard electric voltage | V/Hz | |
| Total installed power | kW |
